28000 Lux 3W IP68 Waterproof Mining Cap Lights with Warning Light Battery Box
1.Features for Mining Cap Lights
1). 1pc Cree led and 2pcs SMD leds : main led is 3w , accessory led is 1w.
2). Light weight, portable,high quality, 100,000 hours led lifetime..
3). More than 16 hours working time, more than 1000 cycles lifetime of the battery.
4).Brightness is up to 28000lux ! Weight is light less than 400g .
5). We will keep free maintenance for you in one year.
6).Explosion-proof, water-proof, protection in electrical short circuit,automatic power- off on the socket,
2.Specification of Mining Cap Lights
| Item | Value |
| Model | GS12-A |
| Light source | 1pc Cree led and 2pcs SMD leds |
|
| Battery capacity | 6.8Ah |
| Rated Voltage | 3.7V |
| Main light current | 450mA |
| Power of the main light | 3W |
| Illuminous | 348LUM |
| Brightness of the main light | 28000lux |
| Life span for main LED | 10000hours |
| Battery cycles | 1000 cycles |
| Working time | 16hours |
| Weight | 396g |
| Water-proof grade | IP68 |
| Battery Box Function | with Warning Light Battery Box |

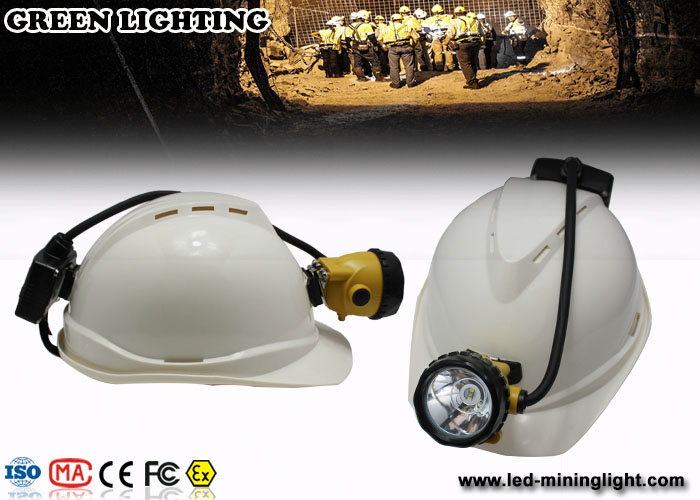

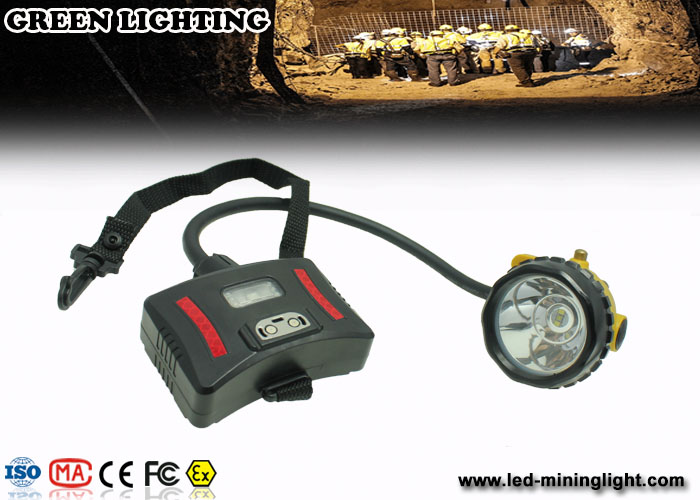

3. Mining Cap Lights Product Image
- The LED cap lamp with four lighting modes.
step one : to press the button the first time and release and then the main light for working light on.
step two : to press the button the second time and release and then the main light for strong light on.
step three : to press the button the third time and release and then the auxiliary light on.
step four : to press the button the fourth time and release and then the lamp turns off.
step five : to press the button the 3 seconds contineously, the lamp transfers toSOS lighting .
- In the first time using lamps,pls use our special charger or accepted charging rack to charging lamps firstly.when the lamps are under charging,charger indicated light is RED COLOR,when the charger indicated light turned GREEN COLOR,it mean that charger have finished to charging.
- To use the cap lamp, you have to let the waistband to go through the waistband ring on battery box and tie it well. Then clip the lamp head on the cap, check the cable and turn the switch on.
4. Mining Cap Lights Troubles and troubleshootings
| Trouble description | Trouble analysis | Troubleshooting |
Light is not on when pressing
the button | Battery power is used up or
Automatic opening protection | Charge the lamp |
Working time is less than
12 hours | Battery is not fully charged | Make sure the lamp well
connected to the charger
when charging |
| Longer charging time | The charging points poor contact | Clean the charging points
and the slot |
| Low illuminance | Dirty lens | Clean water wash lens |
5. Mining Cap Lights Safety warning
a) Please donot shoot at eyes directly while the lamp is working since the strong light will hurt eyes.
b) Please do not disassemble the cap lamp, otherwise it maybe cause potential troubles related to safety, reliability to work underground.
c) Please do not charge the lamp underground.
d) Please keep the lamp away from fire sources.
